Yamato AWD Series Glassware Washer
Choose Your pre-drying option
2 models in this family — select one to see full specs, documents, and pricing.
Laboratory Glassware Washer, Process Monitorable, 220V
$22,788.50

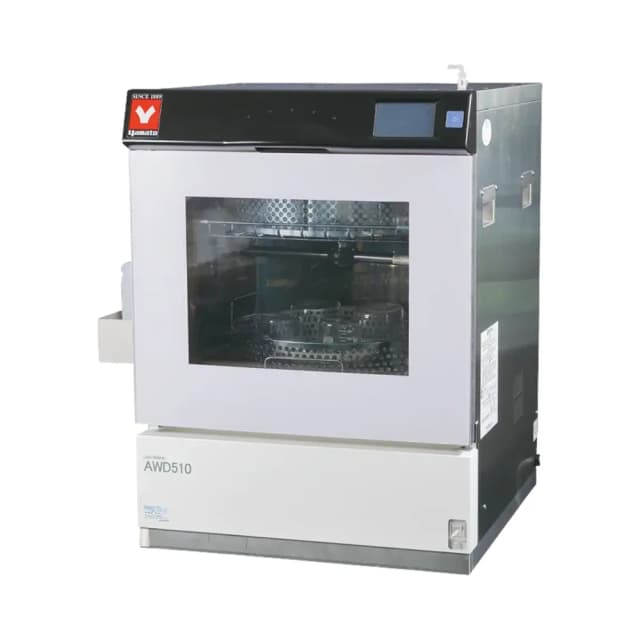

Laboratory Glassware Washer with Pre-Drying, Process Monitorable, 220V
$24,726.50
Not sure which model fits your work? Make sure your quote request has the "🤝 Help me choose" box checked — that way our team will get in touch for a consultation.
Coming from this page, we check the consultation box for you — uncheck it if you just want pricing.
Compare all 2 models
Every model in the Yamato AWD Series Glassware Washer family differs by pre-drying option. Specifications that differ are shown below.
| Model | AWD-510Laboratory Glassware Washer, Process Monitorable, 220V | AWD-510DRYLaboratory Glassware Washer with Pre-Drying, Process Monitorable, 220V |
|---|---|---|
| Price | $22,788.50 $26,810.00 | $24,726.50 $29,090.00 |
| Type | Upper/middle/lower-stage pressurized rotary jet-nozzle washer | Upper/middle/lower-stage pressurized rotary jet-nozzle washer with pre-drying |
| Program | Pre-wash → wash → rinse → final wash | Pre-wash → wash → rinse → final wash → pre-drying |
| View AWD-510 → | View AWD-510DRY → |
Shared by every model in this family
- Door:
- Front-loading (damper); heat-resistant double glass window
- Class:
- Capital — laboratory washer
- Net/Gross Weight:
- Dry weight 87 kg (excl. racks and circulation water)
- Draining:
- ≤60 °C, φ31.5 mm port, forced drain with pump
- Detergent:
- Liquid (automatic supply unit) or powder (manual during operation)
- Power Supply:
- Single phase AC220V, 13 A (breaker 15 A); 3 m cord
- Washing Time:
- 1–60 min (~10 min for ≥90 °C); repeat count 1–10
- Water Supply:
- Tap water G3/4 (G1/2 equipment side), ≥10 L/min, 5–25 °C, 0.1–0.5 MPa
- Objects Washed:
- Glassware including test tubes, flasks, beakers (excluding pipettes)
- Operation Panel:
- 4.3-inch LCD touch panel; calendar/battery backup, set-memory
- Stored Programs:
- 9 patterns
- External Dims (W×D×H):
- W580 × D600 × H845 mm
