Yamato Anaerobic Chambers

Choose a model below

Yamato Anaerobic Chambers — 6 models differing by chamber width (55" two-glove /.

Request a Quote

Choose Your chamber width (55" two-glove / 76" four-glove), manual vs automatic purge, 115 V / 220 V

6 models in this family — select one to see full specs, documents, and pricing.

Yamato AC-505 Anaerobic Chamber, 55" Two-Glove, Manual Purge, 115–120 V

Request a Quote

Yamato AC-505A Anaerobic Chamber, Automatic "Go Anaerobic" Single-Operator, 115 V

Request a Quote

Yamato AC-515 Anaerobic Chamber, 55" Two-Glove, Manual Purge, 220–240 V

Request a Quote

Yamato AC-515A Anaerobic Chamber, Automatic "Go Anaerobic" Single-Operator, 220 V

Request a Quote

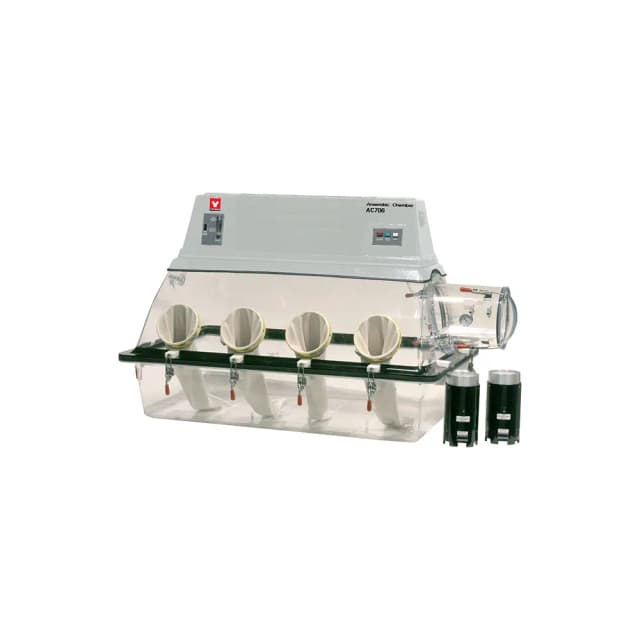

Yamato AC-706 Anaerobic Chamber, 76" Four-Glove, Manual Purge, 115–120 V

Request a Quote

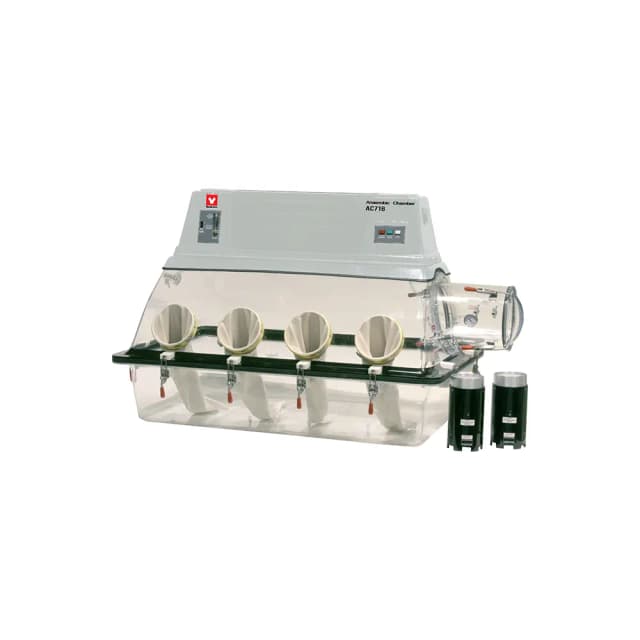

Yamato AC-716 Anaerobic Chamber, 76" Four-Glove, Manual Purge, 220–240 V

Request a Quote

Not sure which model fits your work? Make sure your quote request has the "🤝 Help me choose" box checked — that way our team will get in touch for a consultation.

Coming from this page, we check the consultation box for you — uncheck it if you just want pricing.

Compare all 6 models

Every model in the Yamato Anaerobic Chambers family differs by chamber width (55" two-glove / 76" four-glove), manual vs automatic purge, 115 V / 220 V. Specifications that differ are shown below.

Model	AC-505Yamato AC-505 Anaerobic Chamber, 55" Two-Glove, Manual Purge, 115–120 V	AC-505AYamato AC-505A Anaerobic Chamber, Automatic "Go Anaerobic" Single-Operator, 115 V	AC-515Yamato AC-515 Anaerobic Chamber, 55" Two-Glove, Manual Purge, 220–240 V	AC-515AYamato AC-515A Anaerobic Chamber, Automatic "Go Anaerobic" Single-Operator, 220 V	AC-706Yamato AC-706 Anaerobic Chamber, 76" Four-Glove, Manual Purge, 115–120 V	AC-716Yamato AC-716 Anaerobic Chamber, 76" Four-Glove, Manual Purge, 220–240 V
Power Supply	115–120 VAC, 60 Hz, 10 A	110–120 VAC, 50/60 Hz, 5 A	220–240 VAC, 50 Hz, 5 A	220 VAC, 50/60 Hz, 3 A	115–120 VAC, 60 Hz, 10 A	220–240 VAC, 50 Hz, 5 A
Configuration	Single-operator, two-glove chamber; manual purge	Single-operator chamber; automatic "Go Anaerobic" purge	Single-operator, two-glove chamber; manual purge	Single-operator chamber; automatic "Go Anaerobic" purge	Multi-operator (up to two), four-glove chamber; manual purge	Multi-operator (up to two), four-glove chamber; manual purge
Shipping Weight	450 lbs / 205 kg (crated)	450 lbs / 205 kg (crated)	450 lbs / 205 kg (crated)	450 lbs / 205 kg (crated)	685 lbs / 311 kg (crated)	685 lbs / 311 kg (crated)
Inside Dimensions	41 × 28 × 26 in / 1040 × 710 × 660 mm	41 × 28 × 26 in / 1041 × 711 × 660 mm	41 × 28 × 26 in / 1040 × 710 × 660 mm	41 × 28 × 26 in / 1041 × 711 × 660 mm	60 × 38 × 31 in / 1520 × 960 × 790 mm	60 × 38 × 31 in / 1520 × 960 × 790 mm
Outside Dimensions	55 × 35 × 38 in / 1400 × 890 × 970 mm (incl. 12" transfer chamber)	55 × 35 × 38 in / 1397 × 889 × 965 mm	55 × 35 × 38 in / 1400 × 890 × 970 mm (incl. 12" transfer chamber)	55 × 35 × 38 in / 1397 × 889 × 965 mm	76 × 47 × 42 in / 1930 × 1190 × 1070 mm	76 × 47 × 42 in / 1930 × 1190 × 1070 mm
Gloves	One pair white ambidextrous hypalon	—	One pair white ambidextrous hypalon	—	Two pairs white ambidextrous hypalon	Two pairs white ambidextrous hypalon
Construction	One-piece clear plastic top, die-molded white thermoset bottom, "Easy Clean" corners	—	One-piece clear plastic top, die-molded white thermoset bottom, "Easy Clean" corners	—	Optically clear top and bottom sections with "Easy Clean" corners	Optically clear top and bottom sections with "Easy Clean" corners
Drying Train	3 clear-plastic canisters filled with molecular sieve	—	3 clear-plastic canisters filled with molecular sieve	—	6 polycarbonate canisters filled with molecular sieve	6 polycarbonate canisters filled with molecular sieve
	View AC-505 →	View AC-505A →	View AC-515 →	View AC-515A →	View AC-706 →	View AC-716 →

Looking at other brands too?

Compare this class of equipment spec-by-spec across our brands — same size, different manufacturer, honest guidance on which fits your application.

Compare Across Brands →

Yamato Yamato Anaerobic Chambers

The Yamato Yamato Anaerobic Chambers family covers 6 models, differing by chamber width (55" two-glove / 76" four-glove), manual vs automatic purge, 115 V / 220 V.

Models in this family

AC-505 — Yamato AC-505 Anaerobic Chamber, 55" Two-Glove, Manual Purge, 115–120 V

AC-505A — Yamato AC-505A Anaerobic Chamber, Automatic "Go Anaerobic" Single-Operator, 115 V

AC-515 — Yamato AC-515 Anaerobic Chamber, 55" Two-Glove, Manual Purge, 220–240 V

AC-515A — Yamato AC-515A Anaerobic Chamber, Automatic "Go Anaerobic" Single-Operator, 220 V

AC-706 — Yamato AC-706 Anaerobic Chamber, 76" Four-Glove, Manual Purge, 115–120 V

AC-716 — Yamato AC-716 Anaerobic Chamber, 76" Four-Glove, Manual Purge, 220–240 V

Select a model above to see full specifications, pricing and availability.
