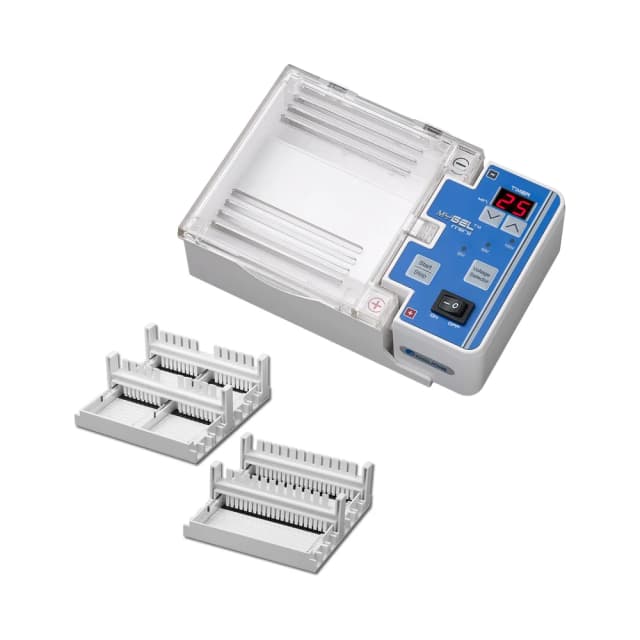

The Accuris myGel Mini Electrophoresis System is a compact integrated electrophoresis platform combining the power supply, gel tank, and dual-format casting stands in a single bench-top unit (190 × 130 × 55 mm). The myGel Mini is engineered for rapid PCR-product screening, restriction-digest analysis, and teaching-lab DNA electrophoresis workflows where the lab needs full-functionality gel electrophoresis without the bench footprint or capital cost of a separate power supply + gel tank system. The integrated design supports two gel formats (10.5 × 6 cm large-format and 5 × 6 cm small-format) on the same chassis via two included casting stands, and ships with the complete consumable starter kit (4 gel trays, 4 combs).
Voltage options: This unit can be ordered with European voltage requirements (230V/50Hz). Contact us to order.
Key Specifications
| SKU | E1101 |
| Voltage | 100–120 VAC (110 V model) |
| Output voltage | DC 35 V, DC 50 V, DC 100 V (3 selectable settings) |
| Timer | 0–99 min (continuous mode by setting timer to 00) |
| Migration tank | 120 × 110 × 45 mm (inner dimension) |
| Buffer volume | 250–300 ml (1× or 0.5× TAE / TBE standard) |
| Casting stand A | 10.5 × 6 cm gel format (included) |
| Casting stand B | 5 × 6 cm gel format (included) |
| Combs A | 3 mm × 1 mm × 22 teeth / 5.6 mm × 1 mm × 12 teeth (reversible) — 2 included |
| Combs B | 3 mm × 1 mm × 18 teeth / 5.6 mm × 1 mm × 10 teeth (reversible) — 2 included |
| Gel trays included | 2 trays A (10.5 × 6 cm) + 4 trays B (5 × 6 cm) |
| Fuse | 250 V, 2 A |
| Dimensions | 190 × 130 × 55 mm (W × D × H) |
| Weight | 0.45 kg (without AC transformer) |
What's Included
Per the myGel Mini brochure, the standard E1101 ships with the Power Supply and Tank Assembly (×1), a power cord, Gel Casting Stand A (10.5 × 6 cm format) and Gel Casting Stand B (5 × 6 cm format), 2 Gel Trays A (paired with Stand A) and 4 Gel Trays B (paired with Stand B), 2 Combs A (22/12 reversible teeth), 2 Combs B (18/10 reversible teeth), and a user manual. An AC transformer is included only with the 230 V variant — not with this 110 V SKU.
The system is functional out-of-the-box for both 10.5 × 6 cm and 5 × 6 cm gel workflows — no additional capital purchase required for first run.
Integrated Design — Why myGel Mini
Single-unit footprint. Unlike traditional electrophoresis setups (separate power supply + gel tank + casting stand on the bench), the myGel Mini integrates all three into a single 190 × 130 × 55 mm unit weighing 0.45 kg. Bench real estate consumed by the entire electrophoresis workflow is comparable to a single small piece of bench equipment.
Dual gel format on one chassis. Both Casting Stand A (10.5 × 6 cm) and Casting Stand B (5 × 6 cm) ship with the system. The lab picks the gel format per workflow:
- Large format (10.5 × 6 cm) with 22-teeth or 12-teeth reversible combs — for higher-throughput sample loads or larger-volume PCR-product screens
- Small format (5 × 6 cm) with 18-teeth or 10-teeth reversible combs — for compact-footprint runs or limited-sample workflows (10–18 lanes)
Three selectable output voltages. DC 35 V (low-voltage long runs for high-resolution separation), DC 50 V (standard runs), DC 100 V (rapid runs for fast PCR-product screening). The voltage selection is a button on the control panel — no separate power-supply programming required.
Reversible comb design. Each comb has two tooth-edges (different tooth widths and counts) — flipping the comb selects between the two configurations. Two combs included per casting-stand format gives the lab 4 effective comb configurations from the included starter kit.
Application Profile
Rapid PCR-product screening — the workhorse workflow for the myGel Mini. PCR-product analysis runs at DC 100 V deliver visible separation in under 30 minutes; the small-format gel supports rapid-screening throughput with minimal buffer / agarose consumption per run.
Restriction-digest analysis — restriction-fragment pattern visualization for cloning verification, plasmid mapping, and genotyping workflows.
Teaching laboratory DNA electrophoresis — undergraduate and graduate molecular-biology coursework where the integrated single-unit design simplifies setup, the dual gel formats support both demonstration and student-cohort workflows, and the compact footprint fits constrained teaching-lab benches.
Field-deployment workflows — the compact 0.45 kg system supports field-lab deployment for environmental sampling, agricultural diagnostics, or veterinary diagnostics workflows.
Genotyping and SNP analysis — endpoint PCR genotyping workflows where rapid gel visualization of the PCR product confirms genotyping call.
Mini-prep verification — plasmid mini-prep verification gels at the small-format 5 × 6 cm format support quick clone-screening throughput.
Frequently Asked Questions
What gel formats does the myGel Mini support? Two — a 10.5 × 6 cm large format and a 5 × 6 cm small format, selectable per workflow via the two included casting stands.
What output voltages are available? DC 35 V, DC 50 V, and DC 100 V — three selectable settings on the control panel.
Does the E1101 include everything needed for a first run? Yes — it ships with the complete dual-format consumable starter kit (4 gel trays and 4 combs) and is functional out-of-the-box for both gel formats, with no additional capital purchase required.
Is an AC transformer included with the 110 V E1101? No — the AC transformer ships only with the 230 V variant, not with this 110 V SKU.
Ordering & Configuration
Buffer setup. 250–300 ml of 1× TAE or 1× TBE (or 0.5× TAE / TBE) is the standard buffer charge. Higher-concentration buffer raises current and may trigger the over-current protection (E5 / E7 errors per brochure troubleshooting).
Gel preparation. Each 10.5 × 6 cm tray requires ~25 ml of agarose (poured at ~60 °C); the 5 × 6 cm tray uses proportionally less. Standard agarose concentrations apply per workflow protocol (typically 1–2% for routine DNA work).
Run protocol. Voltage selection (35 / 50 / 100 V), timer (0–99 min or continuous), Start/Stop button. Run-end alarm beeps 3 times; "Ed" (END) display indication clears with any key press.
Confirm at quote: voltage and plug type (this 110 V SKU vs the 230 V variant), workflow gel format intent (large vs small vs both), power-supply voltage match, training requirements, and lead time.
Warranty: Per Accuris standard warranty terms — confirm at quote.
Accuris myGel Mini Electrophoresis System family:
- E1101 (this product) — 110 V chassis (no transformer included)
- 230 V chassis — AC transformer included (by special order)
- E1101-CS1 — Spare / replacement Gel Casting Stand for 10.5 × 6 cm gels (2 trays + 2 combs included with stand)
- E1101-CS2 — Spare / replacement Gel Casting Stand for 5 × 6 cm gels (4 trays + 2 combs included with stand)
- E1101-COMB1 — Spare reversible combs (22/12 teeth) for E1101-CS1, pack of 2
- E1101-COMB2 — Spare reversible combs (18/10 teeth) for E1101-CS2, pack of 2
The myGel Mini ships with the complete dual-format consumable starter kit; spare casting stands and combs replenish heavy-use workflows.
