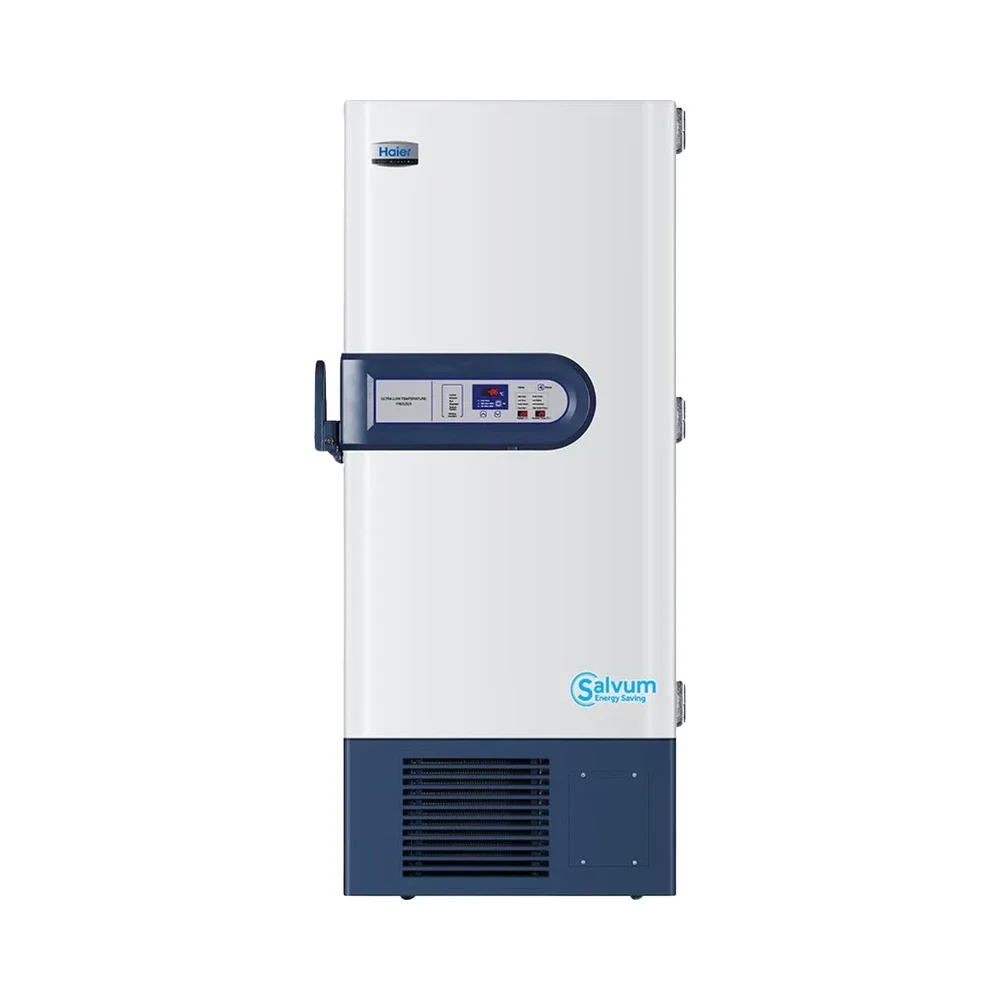

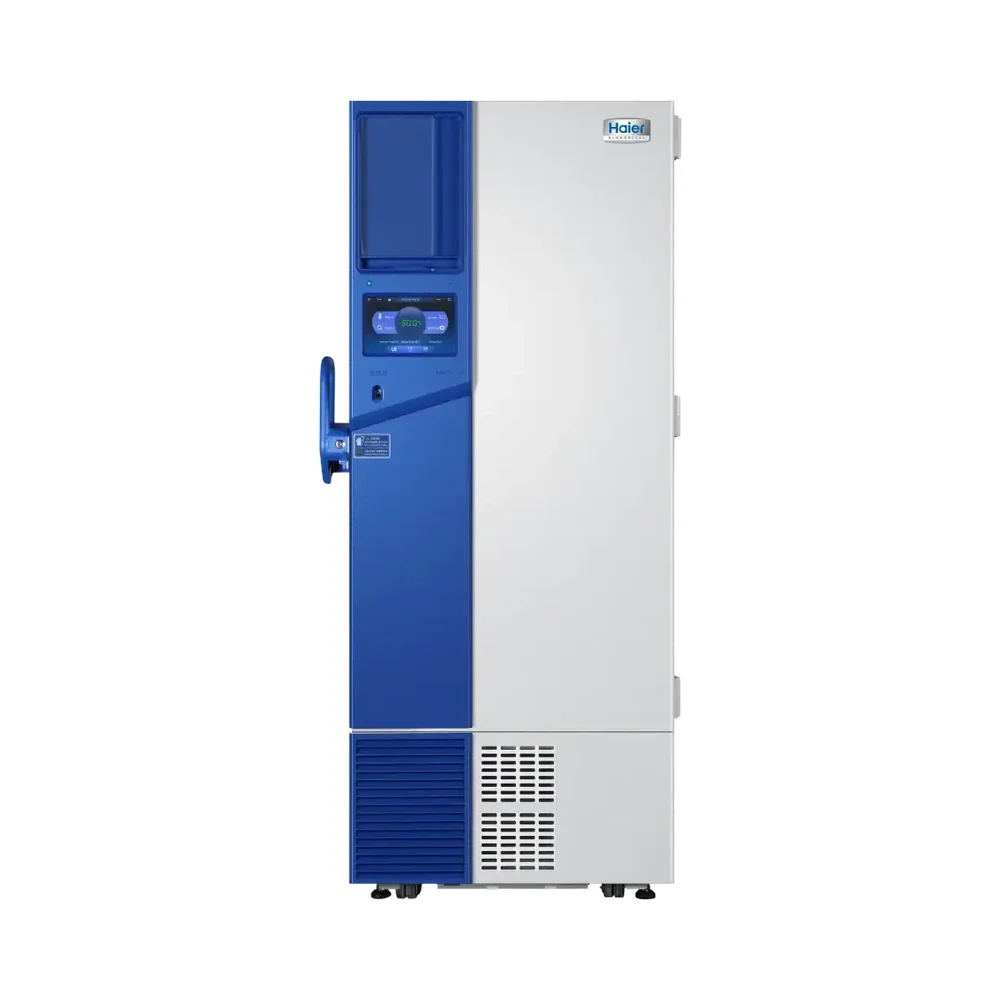

Haier DW-86L578J -86°C Upright ULT Freezer , 115V ENERGY STAR vs Haier TwinCool −86°C Upright ULT Freezer , 578 L Dual-System
These are the same Haier −86°C upright ULT platform at 578 L / 20.4 cu ft — same 400 two-inch-box capacity, four inner doors, three stainless shelves, UL and ENERGY STAR listing, and optional LN₂/CO₂ backup. The difference is the cooling system: the TwinCool runs two independent refrigeration circuits, while the standard model runs a single direct-cooling circuit. That one difference drives redundancy, noise, power, and price.
Which should you choose?
Pick the TwinCool (DW-86L578BPST) when
sample protection is paramount. Two independent HC circuits mean that if one system fails, the other holds −86°C — the right call for irreplaceable cell lines, clinical, or biobank inventory. It is also quieter (42 vs 50 dB(A)) for occupied lab space and takes a universal 100–230 V input with a touchscreen controller. Redundancy is what you are paying the premium for.
Pick the standard ENERGY STAR model (DW-86L578J) when
budget is the priority and single-system reliability fits your risk profile — samples are recoverable, or you already run centralized alarming and can add the optional LN₂/CO₂ backup. You get the same certified 578 L / 400-box capacity at a notably lower price and lower running power (900 vs 1100 W).
Either way
both are UL- and ENERGY STAR-listed −86°C uprights at identical capacity and carry full Haier manufacturer warranty through Legacy Lab Supplies.
Our own take, drawn only from the manufacturer-published specs in the table below.
Specifications side by side
| Spec | Haier DW-86L578J -86°C | Haier TwinCool −86°C |
|---|---|---|
| Spec | Value | — |
| Alarms | High/low temp, hot condenser, power failure, sensor error, low battery, high ambient, door ajar, start-up delay | — |
| Shelves | 3 stainless-steel adjustable | — |
| Max power | 900 W | 1100 W |
| Interfaces | USB, remote alarm, 5V port | — |
| Inner doors | 4 | — |
| Sound level | 50 dB(A) | 42 dB(A) |
| Cabinet type | Upright | Upright |
| Power supply | 120 V, 60 Hz (US 115 V nominal) | 100–230 V / 50/60 Hz |
| Certification | UL, ENERGY STAR | UL, ENERGY STAR |
| Refrigeration | Direct cooling, HC refrigerant, manual defrost | Dual independent HC circuits, frequency conversion |
| Backup systems | LN₂ and CO₂ backup optional | — |
| Sample capacity | 400 2-inch boxes | — |
| Temperature range | -40°C to -86°C | -40°C to -86°C |
| Cooling performance | -86°C | −86°C |
| Controller / display | Microprocessor, LED | Microprocessor, LCD touchscreen |
| Model | — | DW-86L578BPST |
| Backup | — | CO₂ / LN₂ backup optional |
| Capacity | — | 578 L / 20.4 cu ft |
| Rack capacity | — | 16 racks / 400 two-inch boxes |
| Inner doors / shelves | — | 4 inner doors / 3 stainless adjustable shelves |
Highlighted rows differ. Specs are sourced from manufacturer documentation.
FAQ
- What's the difference between the Haier DW-86L578J -86°C Upright ULT Freezer , 115V ENERGY STAR and the Haier TwinCool −86°C Upright ULT Freezer , 578 L Dual-System?
- These are the same Haier −86°C upright ULT platform at 578 L / 20.4 cu ft — same 400 two-inch-box capacity, four inner doors, three stainless shelves, UL and ENERGY STAR listing, and optional LN₂/CO₂ backup. The difference is the cooling system: the TwinCool runs two independent refrigeration circuits, while the standard model runs a single direct-cooling circuit. That one difference drives redundancy, noise, power, and price.
- Which should I buy?
- Pick the TwinCool (DW-86L578BPST) when: sample protection is paramount. Two independent HC circuits mean that if one system fails, the other holds −86°C — the right call for irreplaceable cell lines, clinical, or biobank inventory. It is also quieter (42 vs 50 dB(A)) for occupied lab space and takes a universal 100–230 V input with a touchscreen controller. Redundancy is what you are paying the premium for.
- Do both carry a warranty?
- Yes — both are sold through Legacy Lab Supplies as an authorized distributor and carry full manufacturer warranty.
