Yamato DF & DH Series Large Capacity High Performance Fine Ovens
Choose Your chamber volume (512 / 1000 L) and max temp (200 °C DF / 300 °C DH), 3-phase
4 models in this family. Select one to see full specs, documents, and pricing.

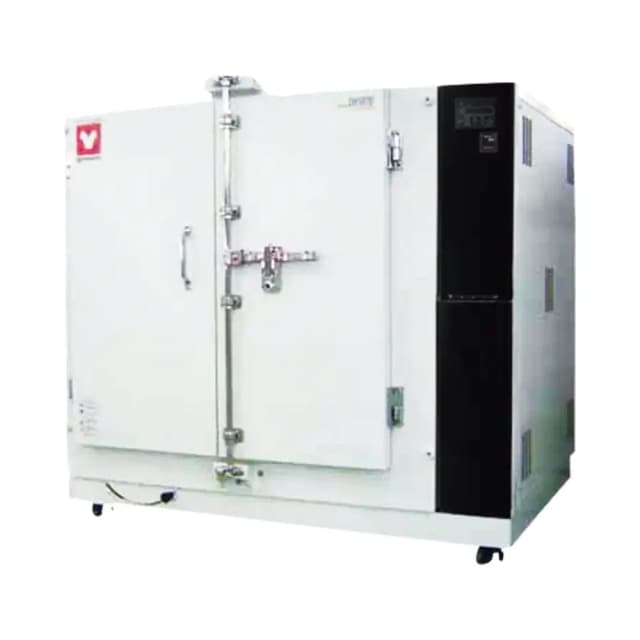

Fine Oven Programmable 512 L, 200 °C, 3-Phase
$13,030.50
Fine Oven Programmable 1000 L, 200 °C, 3-Phase
$16,600.50
Fine Oven Programmable 512 L, 300 °C, 3-Phase
$14,798.50
Fine Oven Programmable 1000 L, 300 °C, 3-Phase
$19,596.75
Not sure which model fits your work? Make sure your quote request has the "🤝 Help me choose" box checked, so our team will get in touch for a consultation.
Coming from this page, we check the consultation box for you. Uncheck it if you just want pricing.
Compare all 4 models
Every model in the Yamato DF & DH Series Large Capacity High Performance Fine Ovens family differs by chamber volume (512 / 1000 L) and max temp (200 °C DF / 300 °C DH), 3-phase. Specifications that differ are shown below.
| Model | DF-832Fine Oven Programmable 512 L, 200 °C, 3-Phase | DF-1032Fine Oven Programmable 1000 L, 200 °C, 3-Phase | DH-832Fine Oven Programmable 512 L, 300 °C, 3-Phase | DH-1032Fine Oven Programmable 1000 L, 300 °C, 3-Phase |
|---|---|---|---|---|
| Price | $13,030.50 MSRP $15,330.00 | $16,600.50 MSRP $19,530.00 | $14,798.50 MSRP $17,410.00 | $19,596.75 MSRP $23,055.00 |
| Heater | Stainless steel pipe heater with fan, 4.5 kW | Stainless steel pipe heater with fan, 6.0 kW | Stainless steel pipe heater with fan, 6.9 kW | Stainless steel pipe heater with fan, 9.0 kW |
| Net/Gross Weight | ~350 kg | ~450 kg | ~350 kg | ~450 kg |
| Fan Motor | Stainless steel axial-flow fan (capacitor motor, 20 W) | Stainless steel axial-flow fan (capacitor motor, 20 W); two motors used on Model 1032 | Stainless steel axial-flow fan (capacitor motor, 20 W) | Stainless steel axial-flow fan (capacitor motor, 20 W); two motors used on Model 1032 |
| Insulation | Glass wool | Glass wool | Glass wool + ceramic fiber | Glass wool + ceramic fiber |
| Power Supply | 3-phase AC220V, 13.5 A, 50/60 Hz | 3-phase AC220V, 17 A, 50/60 Hz | 3-phase AC220V, 20 A, 50/60 Hz | 3-phase AC220V, 28 A, 50/60 Hz |
| Model (Focus) | Yamato DF-832 (catalog model DF832) | Yamato DF-1032 (catalog model DF1032) | Yamato DH-832 (catalog model DH832) | Yamato DH-1032 (catalog model DH1032) |
| Chamber Capacity | 512 L | 1000 L | 512 L | 1000 L |
| Temperature Slope | 15°C (at 200°C) | 15°C (at 200°C) | 20°C (at 300°C) | 20°C (at 300°C) |
| View DF-832 → | View DF-1032 → | View DH-832 → | View DH-1032 → |
Shared by every model in this family
- Spec:
- Value
- Sensor:
- K-thermocouple (double sensor)
- System:
- Forced air circulation and ventilation
- Included:
- 3 shelves / 6 brackets
- Setting Method:
- Digital with ▲▼ keys
- Operation Functions:
- Fixed temperature, program (max 99 steps / 99 patterns, repeat), timed auto-start/stop
- Cable Port / Exhaust:
- I.D. ø30 mm (rear) / manual exhaust damper
- Temperature Controller:
- PID Z control
