The BV1010 BenchMixer™ XL is a high-throughput multi-tube vortexer designed for hands-free, simultaneous vortexing of dozens of tubes per cycle. Where a handheld single-tube vortexer (the BV101 / BV1000 class) processes one tube at a time at the operator's hand, the BenchMixer XL clamps a tube rack onto a powered platform and vortexes the entire rack simultaneously — eliminating the per-tube hands-on time and the wrist strain of repetitive single-tube vortexing across batch workflows. The BV1010 ships with a 50 × 12 mm tube rack as the included starter rack; additional racks for 15 mL, 50 mL, and 1.5/2.0 mL tubes are sold separately. The mixer creates a true vortex by holding the top of the tube stationary while the bottom rotates in a 3.6 mm orbit — same vortex action as a handheld vortexer, applied across a tube rack.
Voltage options: This unit can be ordered with European voltage requirements (230V/50Hz). Contact us to order.
Key Specifications
| Vortex action | True vortex — top of tube held stationary, bottom rotates in 3.6 mm orbit |
| Included starter rack | 50 × 12 mm tube rack |
| Rack capacity (representative) | 50 × 12 mm tubes / 50 × 15 mL tubes (vertical) / 50 × 1.5–2.0 mL tubes (vertical) per workflow rack |
| Time control | Digital microprocessor; precisely controlled time and speed |
| Speed control | Digital microprocessor; precisely controlled |
| Pulse mode | Yes (interval shaking) |
| Operation | Hands-free; load rack, set parameters, run |
| Drive system | Precisely balanced; powerful motor; quiet operation, minimal vibration |
Application Profile
Multi-tube sample mixing for batch protocols where every tube needs identical vortex exposure — buffer-exchange across many samples, reagent suspension, mixing of microbiology cultures pre-plating, or any workflow where well-to-well mixing variance from single-tube vortexing would compromise reproducibility.
Microbiology suspension prep. 50 × 12 mm tube format aligns with bacterial culture-tube workflows; vortex action homogenizes settled cultures uniformly across the rack.
QuEChERS sample prep (sister SKU BV1010-TST is the QuEChERS-optimized variant — see BV1010-TST product page). The base BV1010 is suitable for general sample-prep workflows that don't require the QuEChERS-specific horizontal 50 mL tube layout.
Diagnostic-lab batch mixing. Routine batch mixing of clinical samples — serum / plasma / whole-blood collection tube mixing pre-aliquot, reagent suspension across 96-tube batches.
Educational and teaching labs. Multi-tube vortexing reduces the hands-on time of teaching protocols where every student-prepared sample needs uniform mixing — a single instrument processes the class's entire batch in one cycle.
Pharmaceutical / cosmetic stability sampling. Where stability-study samples need uniform mixing across many time-points and storage conditions, the multi-tube vortexer eliminates per-sample mixing-time variance.
Hands-free workflow. Operator loads the rack, sets time and speed, and walks away — supports parallel workflow execution where the vortexer cycles while the operator works on the next protocol step.
Design Architecture
True vortex action via fixed-top + 3.6 mm orbit bottom. The defining mechanical feature — a true vortex (rather than orbital or planar shaking) requires that the top of the tube be held stationary while the bottom moves in a controlled orbit. The 3.6 mm orbit at the bottom of the rack produces the swirl that lifts settled material into suspension, identical in mechanism to a handheld vortexer at much higher per-tube throughput.
Digital microprocessor for time and speed. Precise control across the speed range; programmed time and speed persist across power cycles via microprocessor memory.
Pulse mode for interval shaking. Programmable burst-then-pause cycles for protocols that require interval mixing (some reagent suspensions, certain extraction workflows where continuous high-energy mixing would denature target molecules but interval mixing is acceptable).
Precisely balanced drive system + powerful motor. Quiet operation, minimal vibration, long service life — the multi-tube vortexer's drive system has to handle off-axis loading (a partially loaded rack is asymmetric) without bench-walk or excess noise. The Benchmark drive design is engineered for this.
Tube-rack design for QuEChERS sister SKU (BV1010-TST). The XLQ rack starter kit includes 7 × 50 mL horizontal racks + 50 × 15 mL vertical racks + 50 × 1.5/2.0 mL vertical racks for QuEChERS sample-prep workflows. The base BV1010 ships with 50 × 12 mm vertical rack — additional rack formats are sold separately for the base BV1010 to extend tube-format compatibility.
Frequently Asked Questions
Q: What tube rack is included with the BV1010? A: A 50 × 12 mm tube rack as the starter rack. Racks for 15 mL, 50 mL, and 1.5/2.0 mL tubes are sold separately.
Q: How does the BenchMixer XL create a vortex? A: It holds the top of the tube stationary while the bottom rotates in a 3.6 mm orbit — the same true-vortex action as a handheld vortexer, applied across a whole tube rack.
Q: What is the difference between the BV1010 and the BV1010-TST? A: The BV1010-TST is the QuEChERS-optimized variant with a 50 mL horizontal + 15 mL + 1.5/2.0 mL QuEChERS rack starter kit; the base BV1010 ships with the 50 × 12 mm rack for general sample prep.
Q: Does it have programmable and pulse control? A: Yes — a digital microprocessor controls time and speed, with a pulse mode for interval shaking.
Ordering & Configuration
Standard configuration. The BV1010 ships with the BenchMixer XL chassis, 50 × 12 mm tube rack (included starter rack), 115 V power cord, operator's manual, and packaging materials.

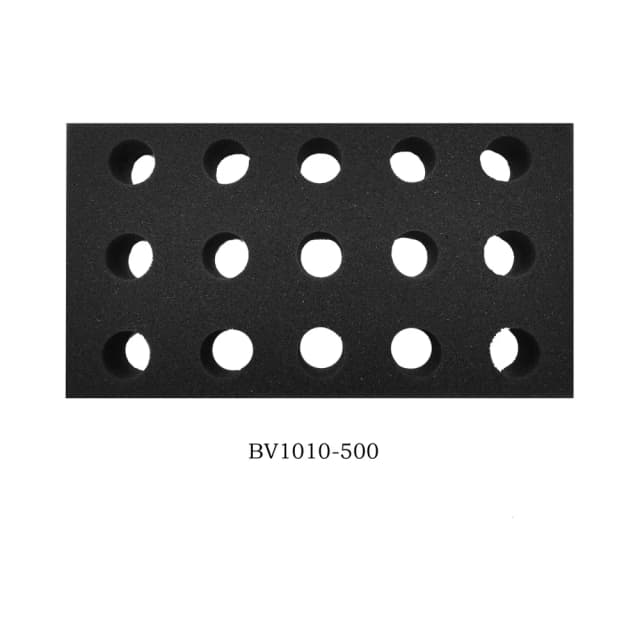

Compatible racks (sold separately):
- 15 mL conical tube racks (vertical orientation)
- 50 mL conical tube racks (vertical or horizontal depending on rack SKU)
- 1.5 / 2.0 mL microtube racks (vertical, high-position-count)
- Custom rack formats per Benchmark catalog
Voltage variants:
- BV1010 — 115 V (this SKU)
Sister product:
- BV1010-TST — BenchMixer XLQ, QuEChERS-optimized variant with 50 mL horizontal + 15 mL + 1.5/2.0 mL QuEChERS rack starter kit
Use the quote request to specify: voltage, additional tube-rack inventory beyond the included 50 × 12 mm starter, training, and lead time. If your workflow is QuEChERS sample-prep specifically, order the BV1010-TST instead of the base BV1010 — same chassis, different rack starter kit.
Warranty: Manufacturer's standard Benchmark Scientific warranty applies.
BenchMixer XL vs handheld vortexer selection: for single-sample / low-throughput workflows, a handheld vortexer (e.g., BV101 Vornado, BV1000 BenchMixer Vortexer) is the right pick — lower cost, faster per-sample workflow when there's only one or two tubes to mix. For batch workflows of 10+ tubes per session where every tube needs identical mixing exposure, the BV1010 BenchMixer XL eliminates per-tube hands-on time and per-sample variance.
