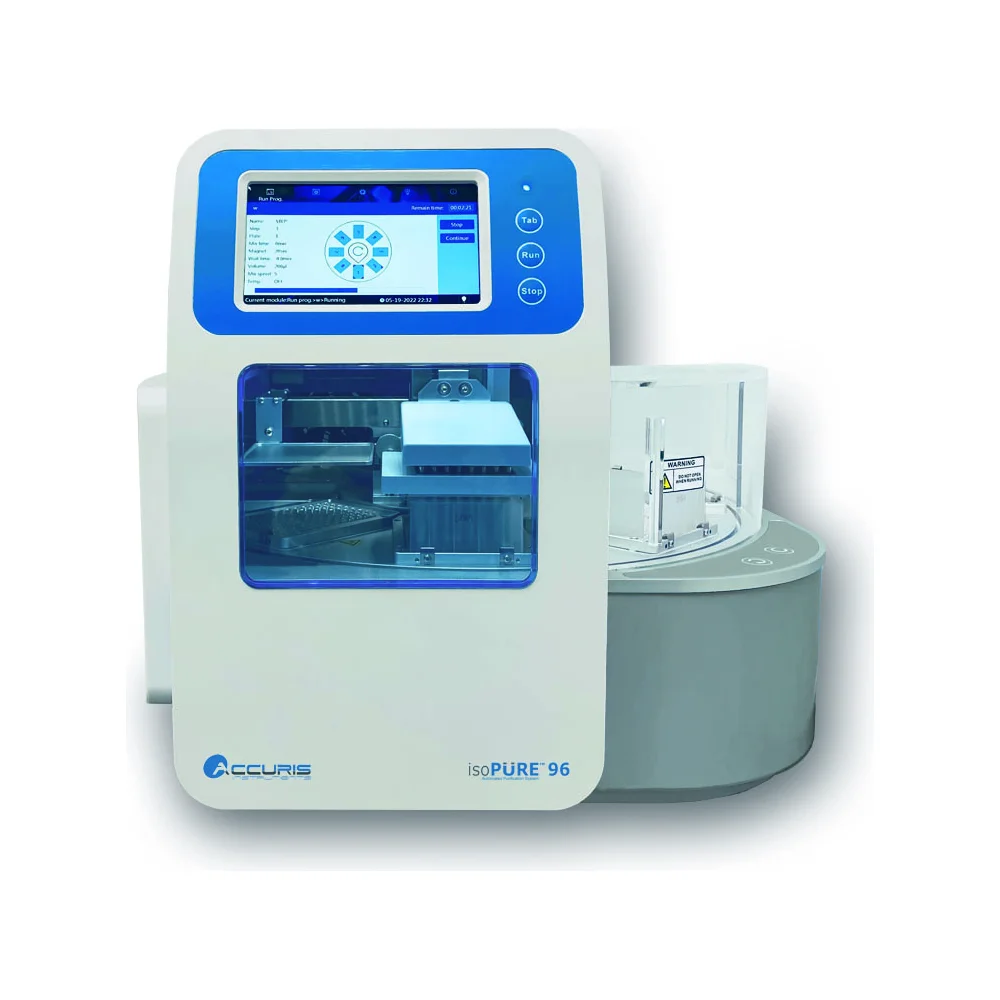

IsoPure™ 96 Automated Purification System , 115V vs IsoPure™ Mini Automated Purification System , 115V
Which should you choose?
- ▸If budget is the priority, IsoPure™ Mini Automated Purification System , 115V is the lower-cost option; IsoPure™ 96 Automated Purification System , 115V lists higher and typically adds capability or capacity.
- ▸Capacity: IsoPure™ 96 Automated Purification System , 115V is "Up to 96 samples per run" vs IsoPure™ Mini Automated Purification System , 115V at "Up to 16 samples per run" — match this to your application.
Specifications side by side
| Spec | IsoPure™ 96 Automated | IsoPure™ Mini Automated |
|---|---|---|
| Mixing | Programmable mixing time, speed, and amplitude per protocol step | — |
| Cooling | Cooling fans for ambient-temperature operation; programmable | — |
| Display | Color touchscreen (with included mouse for protocol creation) | — |
| Capacity | Up to 96 samples per run | Up to 16 samples per run |
| Carousel | 8-position with 2 heating blocks | — |
| Power input | Universal 120 to 240 VAC, 50/60 Hz | Universal 120 to 240 VAC, 50/60 Hz |
| Programming | On-instrument touchscreen, mouse, or PC connection | Android app (Bluetooth transfer) or PC software (USB flash drive transfer); QR-code transfer also supported |
| Plate format | Deep-well plates (IsoPure deep-well plates fit the heating blocks for efficient heat transfer) | — |
| Protocol duration | 10 to 60 minutes typical (depends on kit chemistry and protocol complexity) | 10 to 60 minutes typical |
| Tip comb handling | Automated loading and unloading by designated plate positions in the script | — |
| Run-time estimation | Built-in; displays per-step and total estimated time after protocol creation | — |
| Sample volume range | 50 µL to 1,000 µL | 50 µL to 1,000 µL |
| Lysis & elution temperature range | Ambient +5°C to 120°C | — |
| Footprint | — | 8 × 10 in (compact bench-corner installation) |
| Handheld QR scanner | — | Included with each unit |
| Programmable parameters | — | Mixing speed, sample temperature, magnetization parameters per protocol step |
| Compatible bead chemistries | — | All popular magnetic-bead kits |
Highlighted rows differ. Specs are sourced from manufacturer documentation.
FAQ
- What's the difference between the IsoPure™ 96 Automated Purification System , 115V and the IsoPure™ Mini Automated Purification System , 115V?
- The main differences are in Mixing, Cooling, Display. The table above shows every spec side by side; the decision guide highlights which fits which use case.
- Which should I buy?
- If budget is the priority, IsoPure™ Mini Automated Purification System , 115V is the lower-cost option; IsoPure™ 96 Automated Purification System , 115V lists higher and typically adds capability or capacity.
- Do both carry a warranty?
- Yes — both are sold through Legacy Lab Supplies as an authorized distributor and carry full manufacturer warranty.
Still deciding? Our team compares options with you — no pressure.
